ZEFNET Reports allows charging data to be viewed and downloaded. Note that, prior to generating a report, users can define which charging data should be included in the report, via the following parameters:
Report: ZEFNET has two publicly available reports: Charging Sessions, which provides details about each session that occurs within the defined group/time period, and Monthly Usage, which sums the total session count, energy dispersed, and revenue collected.
Group: Presents data solely from the chargers that reside within a pre-defined group (as defined in the ###Groups### module). Defaults to 'All Devices'.
Date Range: Presents data solely from the time period between the start and end date entered Defaults to the past week. For the Monthly Usage report, users can select '3 months, 6 months, or 1 year of reporting, with the option to include or omit the current month.
Filters: there is an icon in the upper left hand corner of the report window, which allows users to define which data columns should be included. Options include:

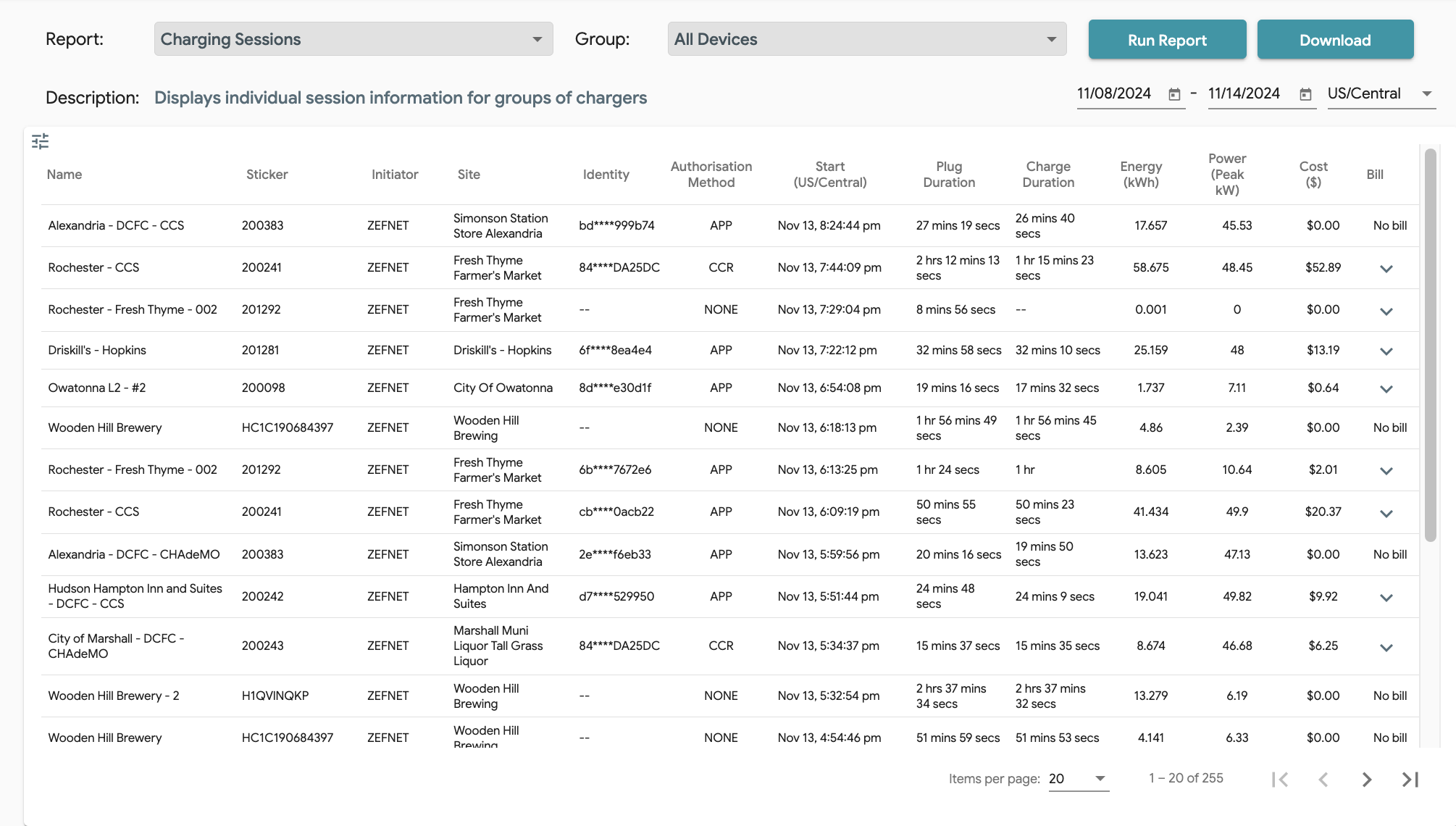

Charging Sessions Report
| Name | charger name as defined during allocation |
| Sticker | QR code sticker ID (networks charger onto mobile app) |
| Serial | charger serial number |
| Initiator |
the entity that initiated the session (will either be ZEF or a partner organization) |
| Authorization Method |
how was the session authorized?
|
| Site | name of the charging site hosting the charger |
| Address | address of the charging site hosting the charger |
| Identity |
an ID that can provide insight into the entity that initiated the session:
|
| Start (Time Zone) | reports session start time in the selected time zone |
| Plug Duration | duration that a vehicle was plugged in (session duration) |
| Charge Duration | duration that the vehicle was actively charging |
| Energy (kWh) | total energy dispensed |
| Peak Power (kW) | highest power level reached during the session |
| Cost ($) | total cost to the driver / revenue collected as defined by the charger's ###Billing Profile### |
| Billing Details | expanding this option presents charging revenue separated by each cost component of the billing profile |
Monthly Usage:
| Month | reporting month |
| Completed Sessions | total count of sessions during reporting month |
| Total Energy (kWh) | total energy dispensed during reporting month |
| Total Cost ($) | total revenue collected from drivers during reporting month |
Once all parameters are set, click 'Run Report' to generate the report.
Clicking the 'Download' button will export a CSV file of the report as generated.
