Ensuring a Proper DCFC Plug Connection

Heavy cables, especially on fast chargers using CCS or Tesla connectors can cause plugs to sag or misalign slightly. This can prevent the internal locking mechanism from fully engaging.

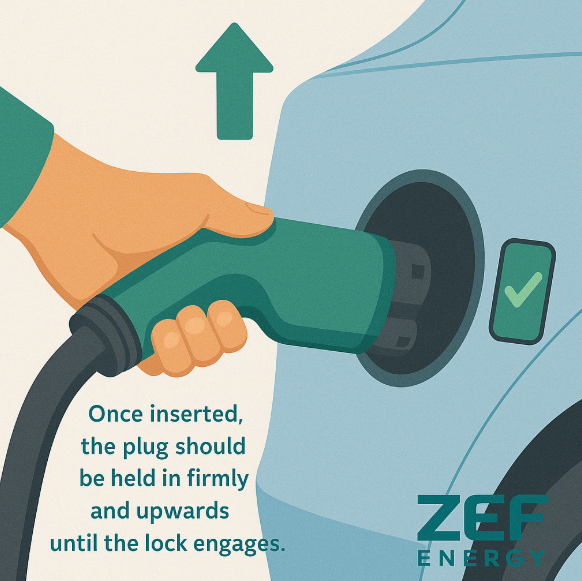

Lifting and supporting the plug briefly as you insert it can help ensure the connector locks in securely, along with the other practices outlined in this article.

Overview

When you plug in, your EV and the charger conduct a quick safety check. If the plug isn't properly seated, any of the following can occur:

• Charging doesn’t start or stops repeatedly

• Overheating and reduced charging speed

• Damage from arcing or misaligned pins

Heavy cables can cause plugs—especially CCS and Tesla—to hang or misalign slightly. Lifting and holding the plug steady for a few seconds while it locks (you may hear a soft whirring sound) can help ensure a secure connection.

A quick check to make sure the plug is fully inserted — and the lock has engaged — can save time, protect your equipment, and ensure a reliable charge.

Variations between Plugs and EV Models:

Not all EV plugs connect the same way. Whether you’re using CCS, Tesla’s NACS, or an adapter, a firm, secure connection is essential for safe and effective charging. The videos linked below demonstrate proper and improper form to ensure proper lock engagement.

Video: CCS Adaptor - Held Upward, Lock Engaging

Video: CCS Adaptor - Not Held Upward, Lock Not Engaging

🔌 CCS: Big & Powerful
Used by most non-Tesla EVs, CCS plugs require a strong push to insert fully.

• Feel for the latch engaging

• Should be snug, with no wiggle

• Support the plug until the lock engages

⚡ Tesla NACS: Sleek but Secure
Tesla’s connector is lighter, but it still needs to be fully inserted for the internal motorized lock to activate.

• Push firmly until the charging port light changes

• You may hear a faint whirring as the pin locks in

• Partial insertion = no charging

🔄 Adapters: Double Check Both Ends
Using a Tesla-to-CCS or CCS-to-Tesla adapter? You’ve got two connection points to get right.

• Support the cable to reduce stress

• Reseat both ends if either feels loose

No matter the plug or adapter, a secure fit allows charging to begin safely and prevents issues. Check for a good connection, listen for the motorized lock, and make sure there’s no visible gap before walking away.

Familiar Concepts between Gas Pumps and EV Chargers

New to EVs? Charging may seem different, but it’s more like pumping gas than you think—especially when it comes to connection.

• ⛽ Nozzle vs. Plug
  Just like a gas nozzle needs to be fully inserted to work, EV plugs must be fully seated. A loose plug can stop charging or prevent it from starting at all.
• ⚡ Spills vs. Sparks
  A sloppy gas connection can spill fuel. A loose EV plug can cause heat, arcing, or damage. In both cases, secure connections are key to safety.
• 🧠 Good Habits Matter

  • Put the car in Park

  • Wait a second before unplugging

  • Check that the plug is snug before walking away

• 🚘 Familiar Process, Modern Tech
  Treat charging like fueling: insert fully, stay aware, and handle with care. Before long, plugging in will feel just as routine.

🔌 For Drivers: Plug Like a Pro

• Push Firmly, Straight In
  Use steady pressure. CCS may require a squeeze; Tesla plugs and some DCFC connectors lock electronically.
• Listen for Confirmation
  You might hear a soft whirring as a locking pin engages—this means the plug is secured. Charging should start within seconds. If not, unplug and try again.
• Support the Cable
  Heavy cables can misalign the plug. Hold it up briefly until it’s latched or locked.
• Check for Debris
  Dirt, ice, or slush can block a good connection. Give the port a quick look.
• Don’t Force It
  If it won’t go in, stop and inspect—forcing can cause damage.
• Wait Before Unplugging
  Wait for the charging session to end and the plug to unlock (you may hear a whirring sound again), then press the button and remove gently.

🏪 For Site Hosts: Set Users Up for Success

• Post Clear Instructions
  Simple signage helps new users avoid common mistakes.
• Inspect Regularly
  Keep plugs clean and check for damage or misalignment.
• Be Ready to Help
  Tips like “hold steady until it locks” are more accurate than “clicks.”
• Track Problem Plugs
  Frequent issues at one port? It might need maintenance.
• Train Staff
  Ensure employees know how to guide users and protect the hardware.
• Final Thought
  A snug, clean connection makes all the difference. A little attention at plug-in time helps avoid big problems later—charging should just work.

Deep Dive into EV Plug Connection

Plugging in your EV may seem simple, but behind that “lock” is a system designed for safe, high-powered charging. Here’s a quick look at the science behind it:

1. Electrical Contact & Resistance
   Power flows through tight metal contacts. If the plug isn’t fully inserted, resistance rises—generating heat that can damage components or, in extreme cases, cause fire. A snug fit ensures safe and efficient power transfer.

2. Arcing & Contact Damage
   Loose plugs can cause electrical arcing—tiny sparks that degrade contact surfaces over time. This increases resistance and wears down the equipment. A firm, full insertion helps prevent these issues.

3. Mechanical Latches & Electronic Locks
   Most fast charging connectors—including CCS and Tesla—use mechanical or motorized locks to stay secure during charging. With DCFC, you may hear a quiet whirring sound rather than a click—this is the motor driving a pin into place to lock the connector. Charging won’t begin until the system confirms the latch is secure.

4. Digital Communication
   Before any current flows, the charger and vehicle exchange digital signals to confirm a proper connection. A poor physical fit can interrupt this handshake, preventing charging from starting or triggering errors.

5. Heat Monitoring
   Smart chargers monitor temperature at the connector. A poor connection can cause heat buildup. If it exceeds safety thresholds, charging may slow down or stop completely.

6. Design Differences: Tesla vs. CCS
   Tesla’s NACS connector is compact and integrates AC and DC pins. CCS is larger due to separate components. Both rely on firm, secure insertion and confirmation from their respective locking systems.

Conclusion: The Lock That Counts
That soft whir signals alignment across electrical, mechanical, and digital systems. A secure connection ensures safe, fast charging—setting you up for a smooth, worry-free drive every time.
